ClearPix™ StopLight Black Backing



Screen Research's StopLight black backing layer is designed to partner the ClearPix™ range of screen fabrics. Offering a high level of acoustic transparency, StopLight does not compromise audio performance.

Its prime purpose is to stop the transfer of projected light which may reflect off of any elements placed behind a screen, such as a flat screen TV or loudspeakers. Any reflected light will be seen by the viewer and distract from the video experience.

Acoustically transparent fabrics such as ClearPix™ range will, by their very nature, allow the transfer of some projected light through their structure. In the case of ClearPix 4K 97% of the projected light is stopped and available for image reproduction. That means that three percent passes through the screen structure and can reflect off any elements placed behind the screen such as a flat TV screen or loudspeakers.

There are two ways of dealing with this possible situation. The installer can strictly control the environment behind the screen. This can be costly and time consuming. A second, more convenient way is to use a layer of a black backing fabric placed directly behind the screen. Integrated into the screen structure, the black backing layer has no adverse effect on the screen installation making it a much more flexible and cost-effective proposition.

Let's take a look at a real-world example. Screen Research's ClearPix 4K screen fabric has a transparency rating of three percent. That means that 97% of the projected light is stopped by the screen. Three percent of the light passes through the screen. If we place a perfect mirror behind the screen, all of that light will be reflected back, destroying the video experience. If we place a layer of StopLight black backing, with a transparency rating of 10%, between the screen and the mirror, only 0.3% of the original light output is allowed to reflect back off the mirror. A further 90% of this is stopped by its second pass through the StopLight layer. This means that 99.97% of the original projected light is stopped by the simple inclusion of a black backing layer.

An additional effect of having a black backing layer is an improvement in the contrast of the projected image. Blacks are dimmed without affecting the white level or luminosity of any colors.

The goal of an acoustically transparent fabric, such as THX certified ClearPix™ fabrics, is to combine superb video performance with excellent acoustic perfomance. The same design goal must apply to any black backing layer. In common with ClearPix™ fabrics, StopLight has a very low acoustic insertion loss resulting is exceptional audio performance. The combination of ClearPix™ fabrics and StopLight gives a maximum linear signal attenutuation of 2dB which requires only a level change in the processor for those loudspeaker channels placed behind the screen. Furthermore, there is no comb filter effect.
The frequency response remains smooth and requires no additional equalization.

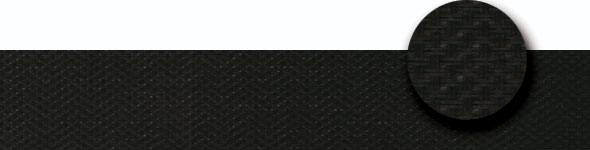

The Fabric
